- Place of Origin: JINAN
- Brand Name: roctech
- Model Number: RC1325RH-ATC

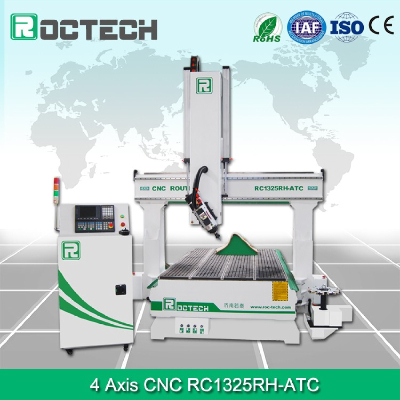

With heavy steel structure, this machine is specially designed for curve surface cabinet, doors and indoor decoration. and also for some mold prcessing.
Can be used for massprocessing with Vacuum holding way and dust collector.
We use top quality components for the machine, such as HSD spindle, and the spindle can rotate
/-90 degree, Yaskawa Inverter, Becker Vacuum pump, Hiwin/Lapping/PMI linear, Syntec control
system and so on, to keep the machine in the best condition even after working for many years.
- Place of Origin: JINAN
- Brand Name: roctech
- Model Number: RC1325RH-ATC

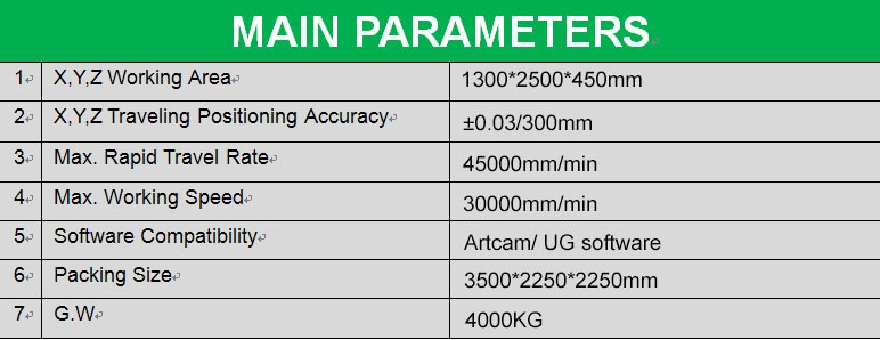

Number | Description | Parameter |
1 | X,Y,Z,B Working Area | 1300x2500x450mmx /-90degree |
2 | Table Size | 1650×3440mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.03mm |
5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
6 | Frame | Heavy Steel Tube Structure |
7 | X, Y Structure | Rack and Pinion Drive, Hiwin/Lapping/PMI Rail Linear Bearings |
8 | Z Structure | Hiwin/Lapping/PMI Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 4.5Kw |
10 | Max. Rapid Travel Rate | 40000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | 9.0KW |
13 | Spindle Speed | 0-18000RPM |
14 | Drive Motors | 850W Yaskawa Motors |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G code |
17 | Operating System | Syntec Control System |
