- Place of Origin: JINAN
- Brand Name: roctech

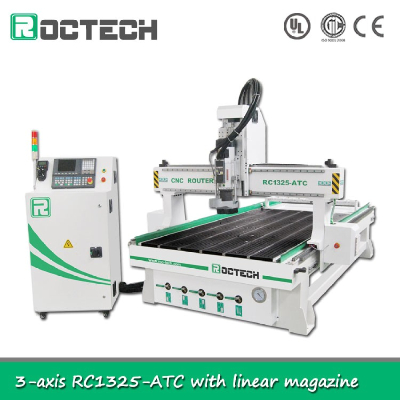

- Model Number: RC1325-ATC
With hard steel structure, the machine is fit for hard wood working, like cutting and engraving on rosewood for furniture, indoor decoration, and it is qualified for mass-producing of furniture with the vacuum holding way and dust collector.

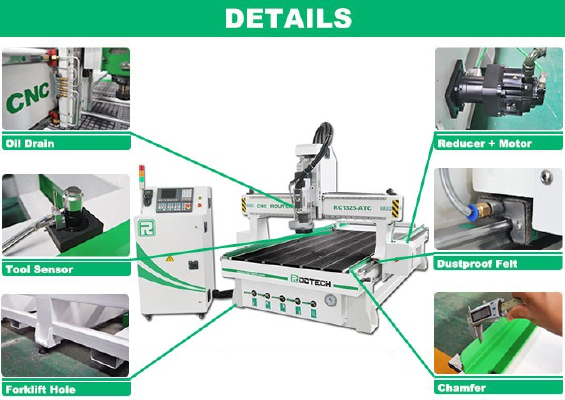

We use top quality components for the machine, such as HSD spindle, Delta Inverter, Becker Vacuum pump, Hiwin linear and so on, to keep the machine in best condition even after working for many years.
- Place of Origin: JINAN
- Brand Name: roctech
- Model Number: RC1325-ATC
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1300mmx2500mmx250mm |
2 | Table Size | 1330mm×3040mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300 |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot table) |
6 | Frame | Welded structure |
7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption | 4.5kw (Without Spindle) |
10 | Max. Rapid Travel Rate | 45000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | 9.0 kw |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | Yaskawa servo motor |
15 | Working Voltage | AC 380V/50/60Hz,3PH |
16 | Command Language | G Code |
17 | Operating System | Syntec Control System |
18 | Computer Interface | Ethernet, CF Card |
19 | Flash Memory | 512M(U Disk) |
20 | Collet | ER32 |
21 | X,Y Resolution | <0.03mm |
22 | Software Compatibility | Type3/UcancameV9 software (Option: Artcam software) |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | Packing Size | 3500X2250X2200mm |
26 | N.W. | 1800KG |
27 | G.W. | 2000KG |
